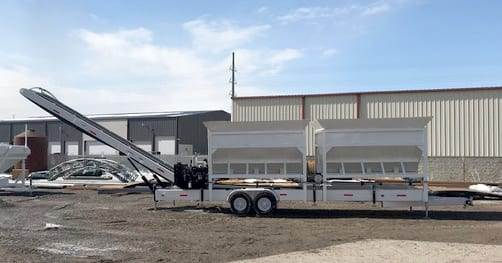

2CL-24-2 Portable Concrete Batching Plant – Automated 24+ Cubic Yards
Interactive 3D Model
Computer Automated
.png)
Double Bin Capacity
(24+ Cubic Yards)
Produces 80-100
Cubic Yards/hr
Custom Colors Available
The 2CL-24-2 portable concrete batch plant is computer automated and has a double bin capacity of 24+ cubic yards.
This mobile concrete batch plant can be towed into very remote job sites where materials can be loaded on-site. Like all 2CL automated batch plants, set up is as easy as finding semi-level ground, lowering the leveling jacks, starting the engine, selecting your batch name, and pushing the start button.
This batcher dispenses sand, rock, cement, and water by weight (lb or kg) for accuracy and ticket-able receipts. Have confidence knowing your mix design is correct and reproduced exactly the same – the first time to the 1,000th time.
The computer handles 30+ different spec mix designs and is completely programmable. This system can also include up to 4 admixtures (one included).
Loading large trucks or 2DH mixers is simple and accurate. The loading conveyor is height adjustable for convenience and ease. Load your trucks with confidence.
The 2CL-24-2 make 80-100 cubic yards per hour. The 7SL-80 or 7SL-120 silos are good choices to use with the 2CL-24-2.
The 2CL-24-2 frees you from the time, distance, and schedule limitations of third-party concrete plants. The 2CL-24-2 loads your specific concrete recipe how, when, and where you want it.
Contact us for information about our larger 36 cubic yard model that is also available.
Additional Info on 2CL-24-2 Portable Concrete Batching Plant – Automated 24 Cubic Yards
Standard Equipment:
The 2CL-24-2 includes a CPU processor, weight scales with the rock hopper and sand hopper, cement control (if the 7SL-120 or 7SL-80 Silo is used), and water control (if the water system is used). Loading conveyor lengths can be custom made for individual applications. Standard conveyor lengths will load the 2DH series portable concrete mixers or truck mounted mixers.
Extended conveyor lengths can be made for loading standard height truck mixers – front or rear discharge.
Water Meter
The water meter measures exact water readings for yardage control.
1000 Gallon Stand Alone Water Tank
-
Load Cells
4 For Each Bin
Diesel Motor
Eletric Start, Proven Durable & Reliable
1280 ENTERPRISE SERIES – Programmable Color Touchscreen HMI Indicator/Controller
Standard Features
-
Seven-inch, 800 x 480 pixel, graphical color display that adjusts for ambient light conditions
-
Highly customizable graphical user interface
-
Three different enclosure types: universal with tilt stand, panel mount, and wall mount
-
Five-wire resistive color touchscreen that can be used with gloves
-
On-screen keyboard available during entry mode, or use an external keyboard
-
Multi-language operation and text entry
-
Keypad for scale operations, numeric entry, and navigation
-
More than 150 built-in functions for programming
-
Customize applications and data tables with iRite™ software
-
Built-in web server for remote access, systems integration, and data monitoring
-
Up to eight scales supporting four scale types:
- Analog load cell scales
-
Serial scales
-
Total scales
-
Program scales
-
Multi-range/interval weighing functions
-
Eight digital I/O for control and pulse count
-
100 setpoints, 18 configurable setpoint types
-
22 soft keys with 10 user-defined
-
Two RS-232 and RS-485 serial ports
-
USB, Ethernet TCP/IP, WiFi, and Bluetooth® ports
Optional Equipment:
Motor Options
For all our Concrete Mixer Batching Plants, we offer the optimal motor type for your application.
-
Gasoline: Gasoline engines are durable, reliable, and cost efficient. They are standard equipment on machines requiring less than 37HP.
-
Diesel: Diesel engines offer superior fuel economy compared to gasoline engines. They are an excellent choice for remote locations, yards, and quarries where diesel fuel is more readily accessible.
-
Electric: Electric motors are the most reliable and efficient system available. They require a minimum of 3ph 480 volt power, and we customize the electrical panel to meet your specific power requirements.
-
Combinations: The combination of electric and diesel motor systems provides unparalleled versatility. This option allows you to optimize efficiency by selecting the most effective power source available for your situation.
Equipment Chart
Shipping Info
ATTENTION! This machine CAN NOT BE TRANSPORTED WHILE LOADED WITH WET OR DRY MATERIALS. It must be stationary for operation.
