The 2CL-36-3 portable ready mix concrete batch plant is computer automated and has a triple bin capacity of 36+ cubic yards.
This mobile ready mix plant can be towed into very remote job sites where materials can be loaded on-site. Like all 2CL automated batch plants, set up is as easy as finding semi level ground, lowering the leveling jacks, starting the engine, selecting your batch name, and pushing the start button.
The batcher dispenses sand, rock, cement, and water by weight (lb or kg) for accuracy and ticket-able receipts. Have confidence knowing your mix design is correct and reproduced exactly the same – the first time to the 1,000th time.
The computer handles 30+ different spec mix designs, and is completely programmable. This system can also include up to 4 admixtures – one included. Loading large trucks or 2DH mixers is simple and accurate. Our loading conveyor is height adjustable for convenience and ease. Load your trucks with confidence.
The 2CL-36-3 makes 80-100 cubic yards per hour. The 7SL-80 or 7SL-120 silos are good choices to use with the 2CL-36-3.
The 2CL-36-3 frees you from the time, distance, and schedule limitations of third-party ready mix plants. The 2CL-36-3 loads your specific concrete recipe how, when, and where you want it.
Contact us for information about our smaller 12 & 24 cubic yard models that are also available.
The 2CL-36-3 includes a CPU processor, weight scales with the rock hopper and sand hopper, cement control (if the 7SL-120 or 7SL-80 Silo is used), and water control (if the water system is used). Loading conveyor lengths can be custom made for individual applications. Standard conveyor lengths will load the 2DH series portable concrete mixers or truck mounted mixers.
Extended conveyor lengths can be made for loading standard height truck mixers – front or rear discharge.
1280 ENTERPRISE SERIES – Programmable Color Touchscreen HMI Indicator/Controller
Standard Features
- Seven-inch, 800 x 480 pixel, graphical color display that adjusts for ambient light conditions
- Highly customizable graphical user interface
- Three different enclosure types: universal with tilt stand, panel mount, and wall mount
- Five-wire resistive color touchscreen that can be used with gloves
- On-screen keyboard available during entry mode, or use an external keyboard
- Multi-language operation and text entry
- Keypad for scale operations, numeric entry, and navigation
- More than 150 built-in functions for programming
- Customize applications and data tables with iRite™ software
- Built-in web server for remote access, systems integration, and data monitoring
- Up to eight scales supporting four scale types:
-
-
- Analog load cell scales
- Serial scales
- Total scales
- Program scales
-
- Multi-range/interval weighing functions
- Eight digital I/O for control and pulse count
- 100 setpoints, 18 configurable setpoint types
- 22 soft keys with 10 user-defined
- Two RS-232 and RS-485 serial ports
- USB, Ethernet TCP/IP, WiFi, and Bluetooth® ports
Load Cells: 4 for each bin
Water Meter
The water meter measures exact water readings for yardage control.
1000 Gallon Stand Alone Water Tank with Pump
Diesel Motor
Electric start, proven durable and reliable.
Water System Options
Hot Water Boiler
Pressure Washer Controls
You choose the motor that will work best for your operation.
Diesel
The diesel motor gets better fuel economy than the gasoline motor. A good choice for mines, yards, and quarries where diesel fuel is more readily accessible.
Electric
The electric motor is the most reliable and efficient motor system. It requires a minimum of 480 3 phase power. The electrical panel will be built to your power requirements.
Combination
The combination electric and diesel, motor system is the most versatile choice. This option enables you to optimize the most efficient power source available.
| = standard = optional | |||||
| Model | 2CL-5-2 5 cu yd Bin | 2CL-8-2 8 cu yd Bin | 2CL-12-2 12 cu yd Bin | 2CL-24-2 24 cu yd Bin | 2CL-36-3 36 cu yd Bin |
| 2 Bin Package: Water Tank, Hydraulic Pump, Load Cells | |||||
| Rapid Mix Drum | |||||
| Auto Controls | |||||
| Hopper Scales | |||||
| Pallet Platform | |||||
| Gasoline Motor | |||||
| Diesel Motor | |||||
| Electric Motor - w/ Panel | |||||
| Pressure Washer | |||||
| Water Meter w/ Hose Hook-up | |||||
| Auto Water Tank - 250 Gallon - standard with 2 Bin | |||||
| Hot Water Boiler | |||||
| 3 Positions (3P) Conveyor - for loading up to 3 mixers at a time |

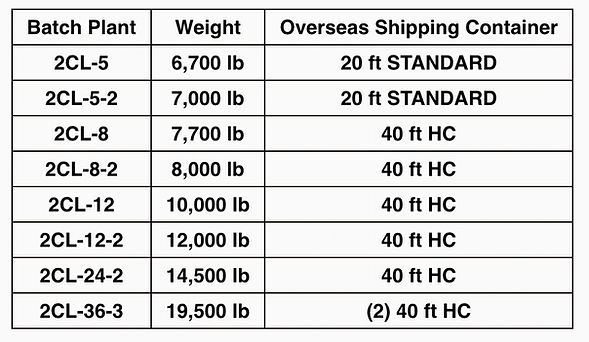

| Batch Plant | Weight | Overseas Shipping Container |
| 2CL-5 | 6,700 lb | 20 ft STANDARD |
| 2CL-5-2 | 7,000 lb | 20 ft STANDARD |
| 2CL-8 | 7,700 lb | 40 ft HC |
| 2CL-8-2 | 8,000 lb | 40 ft HC |
| 2CL-12 | 10,000 lb | 40 ft HC |
| 2CL-12-2 | 12,000 lb | 40 ft HC |
| 2CL-24-2 | 14,500 lb | 40 ft HC |
| 2CL-36-3 | 19,500 lb | (2) 40 ft HC |
ATTENTION! This machine CAN NOT BE TRANSPORTED WHILE LOADED WITH WET OR DRY MATERIALS. It must be stationary for operation.
